5 Types of Joints in Welding – which is strongest Explained

As an Amazon Associate I earn from qualifying purchases.

The process of putting two or more parts together with the help of heat and/or pressure is called welding. Usually, this process is used to join metals together, which you will need to know about in various stages of your life. Along with welding, you need to know about all the joints.

what is the strongest weld

Now, there are different types of welding joints. Sometimes they might be very hard to tell which is strongest weld. So, we are here to help you figure out how you can tell them apart and know more about the joints. For more information, keep reading!

Types of Welding Joints

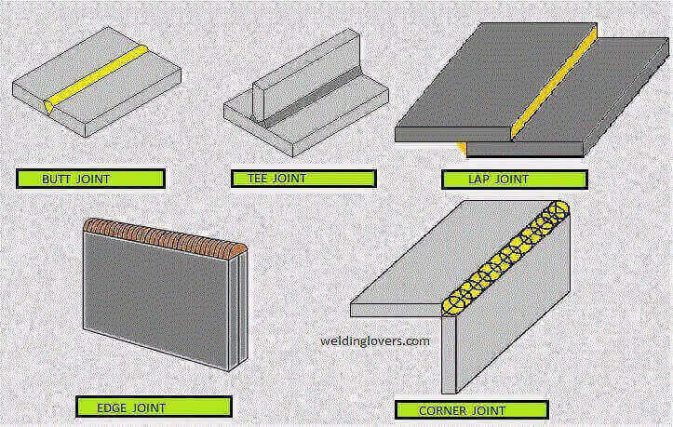

You will find 5 different types of joints in welding, all of which are significant in their own way and are used in a variety of situations depending on what is needed.

Butt Joint

The very first one we are going to be talking about is the butt weld. This is one of the most basic joints out there and is used most frequently. And this is something that you will be using whenever you need to join two more pipes together. The mouths of the pipes are aligned together, this position allows the metals to join and become one.

Along with pipes, this is also commonly used for fittings, valves, and many different kinds of equipment. The items are rowed in a line and then using heat, they are molded together. This process is one of the easiest joints to create as there is no curving or complication in the process.

Not only is it easy and common, but it is also one of the most affordable options. It is one of the most effective and strongest types of weld joints.

Now, there are various types of welding styles that are used to form the butt joint. Such as the bevel-groove butt joint, here one of the metal pieces will have a straight side whereas the other one has a kink to it. As for the V-groove butt joint, both of them have slanted sides that are joined.

This is primarily used to piece together pipes, flanges and framework.

Tee Joint

The relevance of the name comes from the way the joint is formed. Two pipes or objects meet at a perpendicular 90-degree angle. Therefore, it forms a ’T’ shape. You will very commonly see this invests where a perpendicular connection is required for proper airflow.

Once the pipes or tubes put in order, heat and pressure are used to set them into place. You have to be very careful when forming a joint as such, so then the most effective penetration is achieved.

Now, there are a few different types of styles of the tee joint in welding. One of them is bevel-groove weld. Here one of the tubes or surfaces is slanted, and the other is flat. Whereas, for a flare-bevel-groove weld, a circular object is joined with a flatone. So, there are kinks or slants from both sides.

This type of joint is used when the objects are perpendicularly placed. Mostly you will find plates or branches joined together with this joint.

Lap Joint

From the name of the joint, you must have some type of idea what this joint might look like, but if you don’t know, it is when two objects are joined together while one is overlapping the other. The tubes or pipes can be of different lengths or even different thicknesses for this method to work.

This is considered to be a fillet type of joint, much like the tee joint. And this here, you can use two or even more objects together.

Many different types of styles can be used to get this kind of joint through welding. Here as well, you will find the bevel-groove weld where one of the surfaces on one of the objects is slanted or is cut at an angle. Whereas, for the proper fillet weld, all the surfaces are plain.

Here too, you will find the J-groove weld and flare-bevel-groove to get a lap joint.

You will want to use a joint such as this when one of the materials needs to be placed on top of the other. It is the best one to use when you are using stainless steel.

Edge Joint

This one is a little different from the others and can be more complex. And these are most commonly used for sheets of metal with flanging edges. This is also very useful when the metal sheet needs to be attached to an adjacent one.

For this joint, the pieces have to be set beside one another, and the edges will be welded together with the use of heat. Sometimes other materials need to be introduced for it to form a joint. The other metals melt and help them to bond together.

Styles such as the bevel-groove, J-groove, and V-groove are common when’d it comes to form joints. But for this particular one, you can use edge-flange weld, which enables two curved edges to join. There is a corner-flange weld which is similar to the other, only one of the edges are flat.

Corner Joint

And we have finally reached the end of our list of joints. Just as the butt joint is popular for pipes, this one is more commonly used for metal sheets to join the outer edge. When the two pieces are joined together, a right angle should form, or you could also say that it forms an ‘L’ shape.

it’s used weld to fill up the corner. and it is able to create stronger welding.

You will mostly see joints like this when boxes are formed. Now, as for the styles of welding that create the joint, there are many; the flare-V-groove, for example. Here the sheets are curved and are welded together.

And as for the corner-flange weld, one of the surfaces is flat while the other is curved outward. The others here are pretty much standard and the same as it is for the others.

Like the V-groove and J-groove weld, there is also the bevel-groove weld. All of these can be used to form the joint.

Also, don’t forget to check my Can You Weld In The Rain review here.

Final Words

These are the 5 types of joints in welding. You can create these joints with different styles. Hopefully, all your confusion has been cleared, and all the questions answered.
